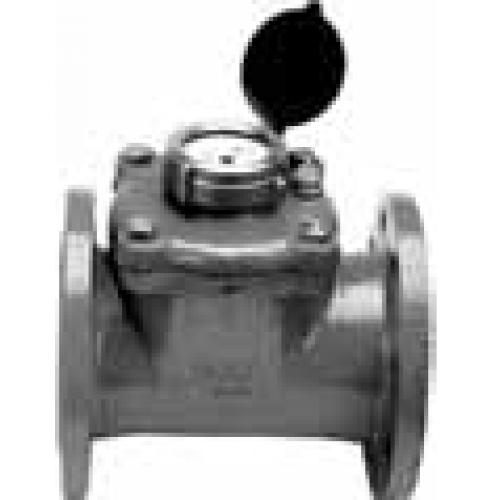

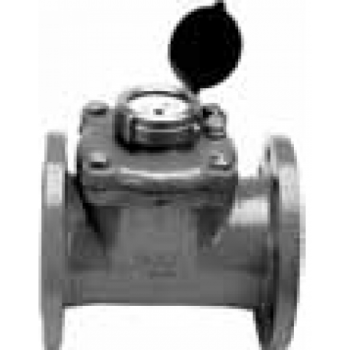

HR LXLG Water Meter 150mm Flanged Table E

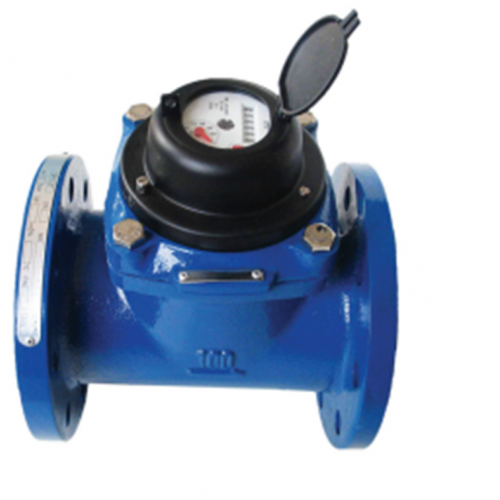

LXLG SERIES WATER METER 150mm Flanged Table E

Used for measuring the volume of water passing through pipeline in irrigation systems. As water passes through the meter, water jets make the impeller rotate.
 The impeller’s rotations are proportional to quantity of water being metered and are magnetically transmitted to the register.

FEATURES

Hermetically vacuum-sealed register Magnetic transmission
 Magnetic shield, for external magnetic
 High-flow accuracy
 Solid and robust design
 High scratch resistant glass on register
 Internal Strainer
 ISO 4064 Class B compliance standard (check local standards)

PULSE REED SWITCH OPTION

Reed switch sends electric signals per a preset water quantity

Data pulse output 100 litre, 80mm & 100mm

Data pulse output 1000 litre, 150mm, 200mm, 250mm & 300mm

Switching voltage 6 VAC/DC

Switching current 0.10 Amp max

Operating Conditions

Water temperature: up to 50°C
 Pressure rating: PN10

INSTALLATION RECOMMENDATIONS

Inlet requires 5 x pipe diameter of straight pipe

Outlet requires 2 x pipe diameter of straight pipe

Follow arrow direction

Install horizontal / vertical

Install a strainer upstream of meter to protect measuring element

Flush line before installation to remove debris

FLOW DATA 150mm

Nominal Flow Lph: 150000

Maximum Flow Lph: 300000

Transitional Flow Lph: 30000

MinimumFlow Lph: 6000
