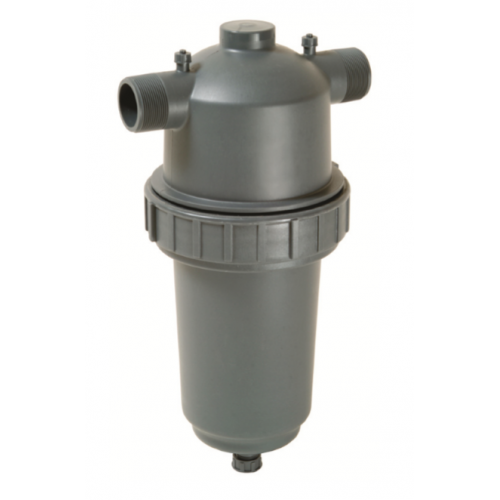

AMIAD Tagline Super 2" Screen SS Filter 130-300 Micron For Irrigation

With their Screen and Disc elements Amiad TAGLINE filters are made for wide range of irrigation applications. The TAGLINE filters are available in various filtration degrees to cover the needs of modern irrigation systems. TAGLINE filters are made from high quality engineered plastic materials providing excellent mechanical strength, durability and ease of installation. Amiad’s TAGLINE filters are easy to maintain; no tools are needed for extracting the filter element from the filter housing for rinsing. Filter Elements Amiad supplies a variety of filter elements for its plastic filters that cover a wide range of flow rates, filtration degrees and applications. This Amiad Super Tagline filter provides larger filtration area than the standard tagline filter.

These screen elements are constructed of molded plastic ribs that support a stainless steel weave-wire or weaved polyester screen for filtration degrees of 800 to 50 micron. Perforated Stainless Steel Elements: (2) Suitable for coarse filtration (straining) between 3,500 and 500 micron.

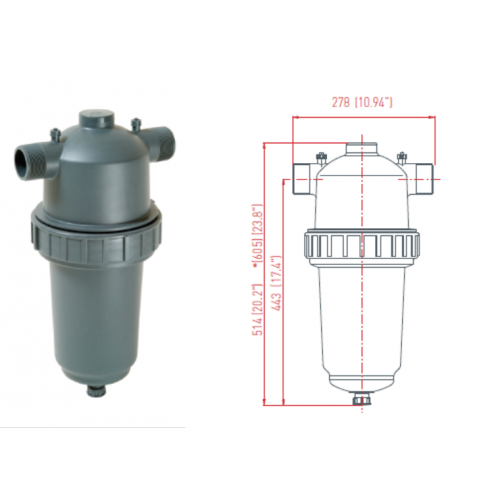

Technical Specifications:

• Maximum Flow Rate : 25 m³/h (110 gpm)
• Inlet / outlet Diameter : 50mm or 2"
• Max Working Pressure : 8 bar (116 psi)
• Max. Working Temperature : 60°C (140°F)
• Weight [empty] : 4.2 kg (9.2 lbs)
• Filtration Area : 700 cm² (108.5 in²)
• Filter Element Type : Nylon screen, weave wire screen

• Filter Housing : Polypropylene + Glass Fibers
• Filter Lid : Polypropylene + Glass Fibers
• Tightening Nut : Polypropylene + Glass Fibers
• Housing Seal : NBR

• Screen :

  • Construction : Polypropylene
  • Mesh = St. St. or Polyester
  • Seals = NBR
